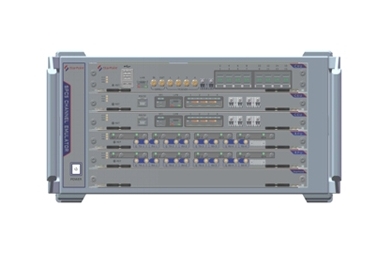

SPC5 Channel Emulator
Product details
Description
SPC5 is an advanced wireless channel emulator, which can provide full support for R&D, test and certification of wireless devices.
Optional Input & Output Interface: RF or Baseband
Support Various Air Interface: GSM, GPRS, EDGE, CDMA2000, TD-SCDMA, WCDMA, LTE, LTE-A, WLAN, Radar, Satellite etc.
Bandwidth & Frequency Range: 160MHz Bandwidth @220MHz~6GHz
Advanced Channel Modeling Tools: MIMO, Beamforming, OTA, User-Define Models etc.
Support multiple instrument cascading to extend emulation capability
Detail Information
SPC5 is an advanced wireless channel emulator, which can provide full support for R&D, test and certification of wireless devices.
Optional Input & Output Interface: RF or Baseband
Support Various Air Interface: GSM, GPRS, EDGE, CDMA2000, TD-SCDMA, WCDMA, LTE, LTE-A, WLAN, Radar, Satellite etc.
Bandwidth & Frequency Range: 160MHz Bandwidth @220MHz~6GHz
Advanced Channel Modeling Tools: MIMO, Beamforming, OTA, User-Define Models etc.
Support multiple instrument cascading to extend emulation capability
Detail Information
| System Specification | |
| RF Channel Configuration* | 4 or 8 |
| MIMO Emulation * | Up to 8×4 |
| RF Frequency Range | 220MHz~6GHz |
| RF Bandwidth | 160MHz |
| Maximum Number of Paths * | 384@160MHz |
| Number of Paths per Logic Channel | 48 (for Terrestrial Emulation) |
| 4 (for Spatial Emulation) | |
| Interference Generator | AWGN, CW |
| Channel Modeling | |
| Standard Channel Models | GSM, CDMA, CDMA2000, WCDMA, TD-SCDMA, LTE, WLAN, WiMAX, DVB-T, DVB-H, etc. |
| Optional Channel Models | SCM、SCME、WINNER、WINNER II、LTE-Advanced、IMT-Advanced、 IEEE 802.11 TGn (IEEE802.11n)、 TGac (IEEE 802.11ac) |
| RF Performance | |
| RF output level range | -120dBm ~ +5dBm (CW, bypass mode) |
| RF input range | -55dBm~+25dBm |
| Receiver Noise Floor | <-160dBm/Hz |
| Digital fading channel dynamics | 60dB |
