IP BOX
Product details

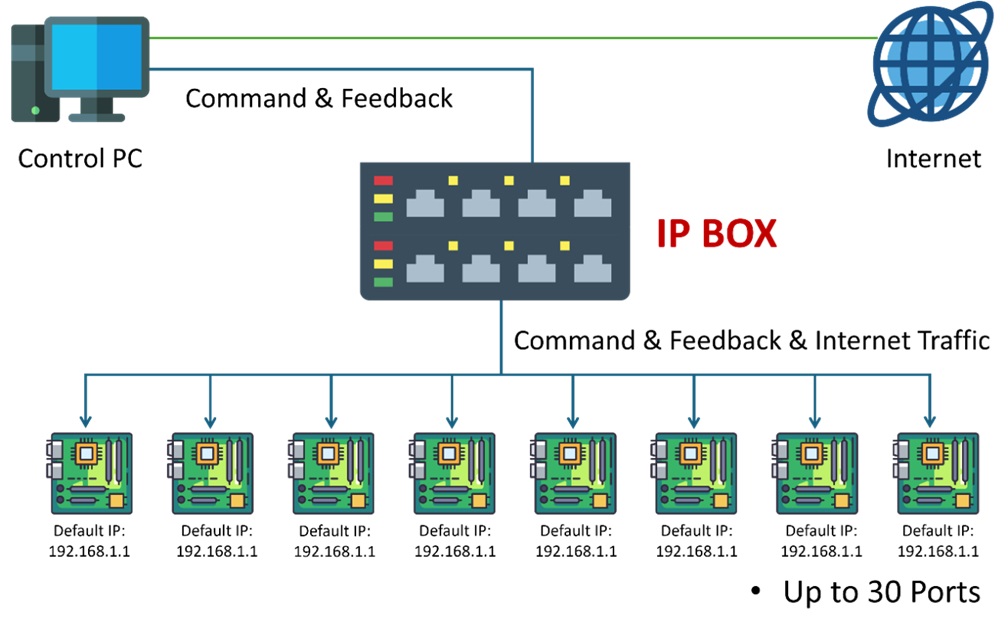

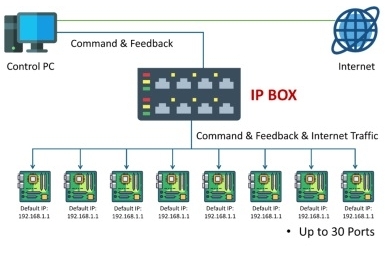

Control and Management of Multiple Sets of Same IP Address
DUTs (Devices Under Test)
DUTs (Devices Under Test)
- The management port of the IP BOX is connected to the Control PC, supporting 1G RJ-45 connection.
- The management port of the IP BOX supports fixed IP settings.
- There are 8 test ports on the IP BOX connected to the DUT, through which instructions can be sent and test results can be returned via 8 sets of IP addresses on the Control PC. (IP addresses can be freely configured.)
For example:
Port 1: 10.0.1.1
Port 2: 10.0.2.1
...
Port 8: 10.0.8.1 - The test ports can connect to DUTs with any IP address, and the default test condition is all DUTs share the same IP.
- The IP BOX can have a built-in TFTP server, allowing each DUT to request file downloads from the TFTP server for DUT software updates.
- The IP BOX can also support multiple DUTs to connect to the external network in real-time through the Control PC.
- The IP BOX can also provide models with high port numbers, up to a maximum of 30.
- 8 independent Ethernet ports are available.
- Supports connection speeds of 10/100/1000 Mbps.
- Provides a GUI for quickly configuring routing tables for IP and physical ports, suitable for automated testing frameworks in production lines.
- Provides TFTP Server, supporting the flashing of FW/SW.
